Product Description

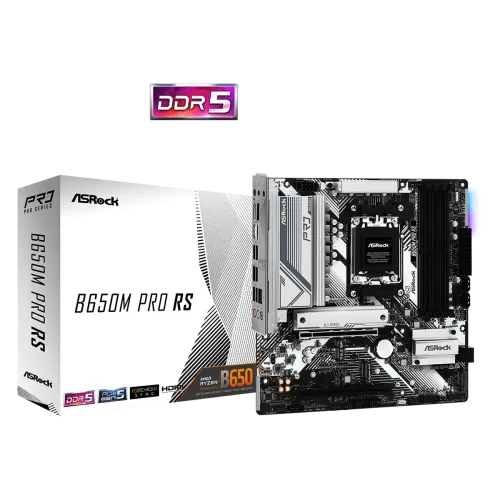

Unlock Next-Gen Performance with the ASRock B650M Pro RS
The ASRock B650M Pro RS is the ultimate motherboard for enthusiasts and professionals seeking a high-performance platform for their AMD Ryzen 9000, 8000, and 7000 Series processors. Designed to deliver exceptional computing power, this motherboard is ideal for gaming, content creation, and demanding applications.
Key Features and Benefits- Supports AMD Socket AM5 Ryzen 9000, 8000, and 7000 Series processors for exceptional performance and compatibility
- Dual Channel DDR5 memory support up to 256GB with speeds up to 7200+(OC)
- 2.5 Gigabit LAN for high-speed network connectivity
- Robust 8+2+1 power phase with Dr.MOS for stable power delivery
- Extensive USB connectivity with 8 USB 2.0, 4 USB 3.2 Gen1, and 2 USB 3.2 Gen2 ports
- Integrated AMD RDNA graphics with HDMI and DisplayPort outputs
The ASRock B650M Pro RS features several cutting-edge technologies to enhance performance and user experience. Some of these key features include:
ASRock Polychrome SYNC for customizable RGB lighting
ASRock Auto Driver Installer for simplified driver installation and updates
Nahimic Audio for immersive sound quality and enhanced audio capabilities
Dragon 2.5G LAN Software for optimized network performance and management
Part ID: #CAN-01293
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
ASRock B650M Pro RS AM5 Micro ATX Motherboard
|
In Stock | Call for Price | 1 week ago | |
|
Nexus Computer
ASRock B650M Pro RS AM5 Micro ATX Motherboard
|
In Stock | 20,200 | 4 hours ago | |
|
Creatus Computer
ASRock B650M Pro RS AMD Motherboard
|
In Stock | 22,800 | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors
Chipset
AMD B650
BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support
Form Factor
- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm - 2oz Copper PCB
Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio
Expansion Slots
PCI
CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* - 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode* Chipset: - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - Supports AMD CrossFire™ - 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Memory
Type
DDR5
Slots
- 4 x DDR5 DIMM Slots
Supported Memory
- Dual Channel DDR5 Memory Technology - Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)* - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Maximum Memory
Max. 256GB
Graphics
Graphics
Integrated AMD RDNA graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Connector & Ports
HDMI
1x HDMI
Display Port (s)
1x DisplayPort 1.4
USB (s)
- 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) - 1 x USB 3.2 Gen1 Type-C (Front) - 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front)
LAN Port (s)
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control
Supported Storage
CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors
RAID
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Audio
3 x Audio jacks
Internal I/O Ports
Rear Panel I/O - 2 x Antenna Mounting Points - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) - 2 x USB 3.2 Gen1 Ports - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone Connector - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header
TPM (Trusted Platform Module )
- 1 x SPI TPM Header
Others
Special Features
Superb Productivity - PCIe Gen5 (M.2) - Dual Channel DDR5 Rock-Solid Durability - 8+2+1 Power Phase, 50A Dr.MOS - Pre-Installed I/O Shield Ultrafast Connectivity - 2.5G LAN EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer
Bundled Software
Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash
Warranty Information
Manufacturing Warranty
3 Years Warranty
Key Features
Model
B650M Pro RS
Supported CPU
Ryzen 9000/8000/ 7000 Series Processors for Socket AM5
Supported RAM
4x DDR5, up to 256GB, 7200+(OC)
Graphics Output
1x HDMI, 1x DisplayPort
Features
2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Part ID: #CAN-01293
Last Updated: 1 month ago
