Product Description

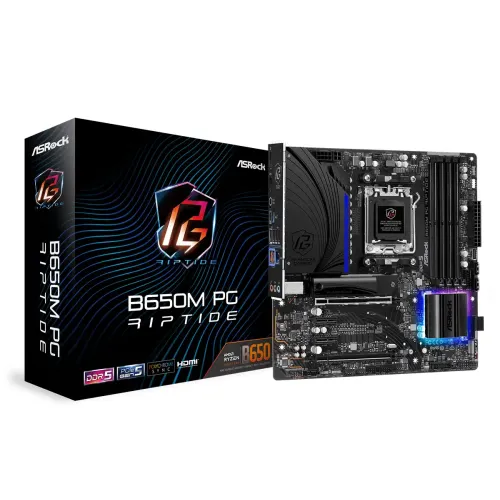

Unlock Your Gaming Potential with the ASRock B650M PG Riptide Motherboard
Take your gaming experience to the next level with the ASRock B650M PG Riptide motherboard, designed specifically for AMD's Ryzen 8000 & 7000-series processors. This powerful motherboard offers lightning-fast performance, cutting-edge features, and exceptional durability, making it the perfect choice for avid gamers and enthusiasts.
Key Features and Performance Highlights
- Support for AMD Ryzen 8000 & 7000-series processors with up to 16 Zen 4 cores
- Dual-channel DDR5 memory with a maximum memory capacity of up to 128GB
- 12+2+1 Power Phase with Dr.MOS design and the latest SPS (Smart Power Stage) technology
- 2.5G LAN for fast and reliable networking
- PCIe Gen5 M.2 for blazing-fast storage speeds
- Nahimic Audio for immersive gaming and audio experiences
Proprietary Technologies for Enhanced Performance
Nahimic Audio technology offers an engaging listening experience with vivid and rich sound details. The Sound Tracker visual indicator provides a 360° sound positioning radar for full immersion during games. The Lightning Gaming Ports are designed for high-speed mice and keyboards, reducing jitter and latency.
The Blazing M.2 slot accommodates the latest PCI Express 5.0 standard, delivering a breathtaking 128GB/s transfer speed. The extra-large aluminum alloy M.2 heatsink effectively improves heat dissipation, ensuring stable performance and top-notch cooling for high-speed M.2 SSDs.
Part ID: #CAN-01189
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
ASRock B650M PG Riptide AMD AM5 Micro ATX Motherboard
|
In Stock | Call for Price | 1 week ago | |
|
Creatus Computer
ASRock B650M PG Riptide AMD AM5 Micro ATX Motherboard
|
In Stock | Call for Price | 4 hours ago | |
|
PC House
ASRock B650M PG Riptide AMD AM5 Micro ATX Motherboard
|
In Stock | Call for Price | 3 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports AMD Socket AM5 Ryzen 8000 & 7000 Series Processors
Chipset
AMD B650
BIOS
256Mb AMI UEFI Legal BIOS with GUI support
Form Factor
- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm - 2oz Copper PCB
Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio
Expansion Slots
PCI
CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3) - Supports AMD CrossFire - 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Memory
Type
DDR5
Slots
4 DIMMs
Supported Memory
- Dual Channel DDR5 Memory Technology - Supports DDR5 non-ECC, un-buffered memory up to 6200+(OC) - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Maximum Memory
128GB
Graphics
Graphics
Integrated AMD RDNA 2 graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Connector & Ports
HDMI
1 x HDMI Port
Display Port (s)
1 x DisplayPort 1.4
USB (s)
- 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) - 1 x USB 3.2 Gen1 Type-C (Front) - 6 x USB 3.2 Gen1 (2 Rear, 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front)
LAN Port (s)
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Phantom Gaming LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control
Supported Storage
CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 4 x SATA3 6.0 Gb/s Connectors
RAID
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Audio
HD Audio Jacks: Line in / Front Speaker / Microphone
Internal I/O Ports
- 1 x Power LED and Speaker Header - 1 x RGB LED Header - 3 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x 4 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header
TPM (Trusted Platform Module )
1 x SPI TPM Header
Others
Special Features
Superb Productivity - PCIe Gen5 (M.2) - Dual Channel DDR5 Rock-Solid Durability - 12+2+1 Power Phase, 50A Dr.MOS with Enlarged Heatsink Armor - Flexible Integrated I/O Shield Ultrafast Gaming - 2.5G LAN - ASRock Lightning Gaming Ports EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker
Bundled Software
Software - ASRock Motherboard Utility (Phantom Gaming Tuning) - ASRock Phantom Gaming LAN Software - ASRock Polychrome SYNC UEFI - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash
Warranty Information
Manufacturing Warranty
3 Years
Key Features
Model
B650M PG Riptide
Supported CPU
Ryzen 8000/ 7000 Series Processors for Socket AM5
Supported RAM
4x DDR5, Max 128GB
Graphics Output
HDMI, DisplayPort
Features
2 PCIe 4.0 x16, 2 PCIe 3.0 x1
Part ID: #CAN-01189
Last Updated: 1 month ago
