Product Description

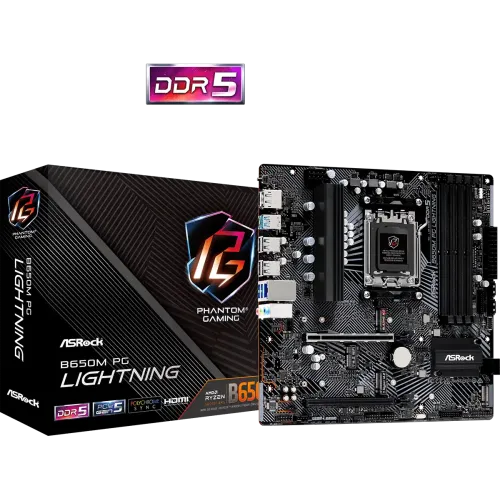

Unlock Unparalleled Performance with the ASRock B650M PG Lightning
The ASRock B650M PG Lightning is designed for serious gamers and professionals seeking high-speed memory performance and robust power delivery. This powerful Micro ATX motherboard supports the latest AMD Socket AM5 Ryzen 9000, 8000, and 7000 Series Processors, delivering exceptional performance and efficiency.
Key Features and Benefits
- Support for AMD Socket AM5 Ryzen 9000, 8000, and 7000 Series Processors
- Four DDR5 DIMM slots with dual-channel memory configurations up to 7200+ MHz (overclocked)
- Robust 6+2+1 power phase design with Dr.MOS technology for reliable power delivery
- Comprehensive connectivity options, including PCIe 4.0 x16 slot, M.2 Key-E slot for WiFi modules, HDMI, and DisplayPort
- Support for 2.5 Gigabit LAN for high-speed networking and Phantom Gaming LAN software
Proprietary Technologies and Advantages
The ASRock B650M PG Lightning features advanced technologies that enhance performance and user experience. With the Dr.MOS technology, you can enjoy reliable power delivery and efficient performance. Additionally, the motherboard supports Nahimic Audio enhancement, delivering an immersive audio experience.
Connectivity and Storage Options
The ASRock B650M PG Lightning offers a comprehensive set of connectivity options, including one USB 3.2 Gen2 Type-A and Type-C on the rear, one USB 3.2 Gen1 Type-C on the front, and six USB 3.2 Gen1 Type-A ports (two rear, four front). For storage, the motherboard features four SATA3 ports, one Blazing M.2 (PCIe Gen5 x4), one Hyper M.2 (PCIe Gen4 x4), and one M.2 slot (PCIe Gen4 x2).
Part ID: #CAN-01283
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
ASRock B650M PG Lightning AM5 Micro ATX Motherboard
|
In Stock | Call for Price | 1 week ago | |
|
Nexus Computer
ASRock B650M PG Lightning AM5 Micro ATX Motherboard
|
In Stock | 18,300 | 4 hours ago | |
|
Creatus Computer
ASRock B650M PG Lightning AMD Motherboard
|
In Stock | 18,500 | 4 hours ago | |
|
Ultra Technology
ASRock B650M PG Lightning AM5 Micro ATX Motherboard
|
Check Stock | Call for Price | 4 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
- Supports AMD Socket AM5 Ryzem 9000, 8000 and 7000 Series Processors
Chipset
AMD B650
BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support
Form Factor
- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio
Expansion Slots
PCI
CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode - 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode Chipset: - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - Supports AMD CrossFire - 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Memory
Type
DDR5
Slots
4x DIMMs
Supported Memory
- Dual Channel DDR5 Memory Technology - Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC) - Max. capacity of system memory: 256GB - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Maximum Memory
256GB
Graphics
Graphics
Integrated AMD RDNA graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Connector & Ports
HDMI
1 x HDMI Port
Display Port (s)
1 x DisplayPort 1.4
USB (s)
- 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) - 1 x USB 3.2 Gen1 Type-C (Front) - 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front)
LAN Port (s)
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Phantom Gaming LAN Software - Smart Auto Adjust Bandwidth Control - Visual User-Friendly UI - Visual Network Usage Statistics - Optimized Default Settings for Game, Browser, and Streaming Modes - User Customized Priority Control
Supported Storage
CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors
RAID
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Audio
HD Audio Jacks: Line in / Front Speaker / Microphone
Internal I/O Ports
Rear Panel I/O - 2 x Antenna Mounting Points - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) - 2 x USB 3.2 Gen1 Type-A Ports - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone Connector - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header
TPM (Trusted Platform Module )
- 1 x SPI TPM Header
Others
Special Features
Superb Productivity - PCIe Gen5 (M.2) - Dual Channel DDR5 Rock-Solid Durability - 6+2+1 Power Phase, 50A Dr.MOS Ultrafast Connectivity - 2.5G LAN EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer
Bundled Software
Software - ASRock Motherboard Utility (Phantom Gaming Tuning) - ASRock Phantom Gaming LAN Software - ASRock Polychrome SYNC* UEFI - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash
Warranty Information
Manufacturing Warranty
3 Years
Key Features
Model
B650M PG Lightning
Supported CPU
Ryzen 9000/8000/ 7000 Series Processors for Socket AM5
Supported RAM
4x DDR5, 7200 +(OC), Max 256GB
Graphics Output
1x HDMI, 1x DisplayPort
Features
2.5 Gigabit LAN 10/100/1000/2500 Mb/s
