Product Description

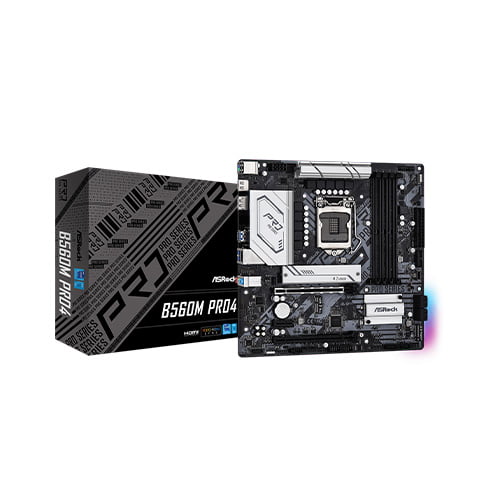

Upgrade Your Gaming Experience with the ASRock B560M Pro4
The ASRock B560M Pro4 is the perfect motherboard for gamers and content creators who demand high-performance and reliability. With its robust feature set and 10th and 11th Gen Intel Core processor support, this Micro ATX motherboard is designed to deliver exceptional gaming and productivity experiences.
- Support for 10th and 11th Gen Intel Core Processors: Enjoy the latest Intel processor technology with this motherboard, delivering unparalleled performance and efficiency.
- Dual-Channel DDR4 Memory Technology: Support up to 128GB of DDR4 memory for seamless multitasking and gaming.
- 2 x PCI Express x16 Slots: Run multiple graphics cards for enhanced gaming performance and support for AMD Quad CrossFireX and CrossFireX.
- 7.1 CH HD Audio: Experience immersive audio with the Realtek ALC897 Audio Codec and Nahimic Audio support.
- Intel B560 Chipset: Enjoy the reliability and performance of the Intel B560 chipset, optimized for 10th and 11th Gen Intel Core processors.
- 3 Years Warranty: Enjoy peace of mind with a comprehensive 3-year warranty and dedicated customer support.
The ASRock B560M Pro4 also boasts several exclusive features that set it apart from other motherboards, including:
- ASRock Digi Power Design: Delivering high-quality power to your system with 8 power phases and 60A power chokes.
- ASRock Hyper BCLK Engine: Unlock the full potential of your processor with this advanced BCLK overclocking technology.
- ASRock UEFI BIOS: Enjoy a user-friendly and feature-rich UEFI BIOS with advanced fan control and monitoring.
Part ID: #CAN-02200
Last Updated: 1 month ago
Available Deals & Price Comparison
Prices updated dailyHistorical Pricing Trend
Product Specifications
General Information
Dimensions
9.6-in x 9.6-in, 24.4 cm x 24.4 cm
External I/O Ports
3 x Antenna Mounting Points 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 1 x DisplayPort 1.4 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) 2 x USB 2.0 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone
LAN
Gigabit LAN 10/100/1000 Mb/s Giga PHY Intel I219V Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE
Memory
Dual-Channel DDR4 Memory Technology 4 x DDR4 DIMM Slots 11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC) 10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4600+(OC) - Supports ECC UDIMM memory modules (operate in non-ECC mode) Max. the capacity of system memory: 128GB Supports Intel Extreme Memory Profile (XMP) 2.0
Slots
11th Gen Intel Core Processors 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE3)) 10th Gen Intel Core Processors 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen3x16 (PCIE1); dual at Gen3x16 (PCIE1) / Gen3x4 (PCIE3)) 1 x PCI Express 3.0 x1 Slot Supports AMD Quad CrossFireX and CrossFireX 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT)
Main Features
Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec) Supports Surge Protection Nahimic Audio
BIOS
128Mb AMI UEFI Legal BIOS with multilingual GUI support ACPI 6.0 Compliant wake-up events SMBIOS 2.7 Support CPU Core/Cache, GT, DRAM, VPPM, VCCIN AUX, VCCSA, VCCIO Multi-adjustment
Chipset
Intel B560
Form Factor
Micro ATX Form Factor
Supported CPU
Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors (LGA1200) Digi Power design 8 Power Phase design Supports Intel Turbo Boost Max 3.0 Technology
Graphics Specifications
Graphics Memory
11th Gen Intel Core Processors support Intel Xe Graphics Architecture (Gen 12). 10th Gen Intel Core Processors support Gen 9 Graphics - Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built-In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1 Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, UHD/HDR Blu-ray Disc Dual graphics output: Support HDMI and DisplayPort 1.4 ports by independent display controllers Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC, and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required) Supports HDCP 2.3 with HDMI 2.0 and DisplayPort 1.4 Ports Supports 4K Ultra HD (UHD) playback with HDMI 2.0 and DisplayPort 1.4 Ports
Connector & ports
Internal I/O Ports
SPI TPM Header Chassis Intrusion and Speaker Header 2 x RGB LED Headers 2 x Addressable LED Headers 1 x CPU Fan Connector (4-pin) 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) 1 x Front Panel Audio Connector 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)
Supported Storage
6 x SATA3 6.0 Gb/s Connectors, support Intel Rapid Storage Technology 18, NCQ, AHCI, and Hot Plug 1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Socket M2_1 works with 11th Gen Intel Core processors only) 1 x Ultra M.2 Socket (M2_2), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s
Warranty Information
Warranty
3 Years
