Product Description
Upgrade Your Gaming Experience

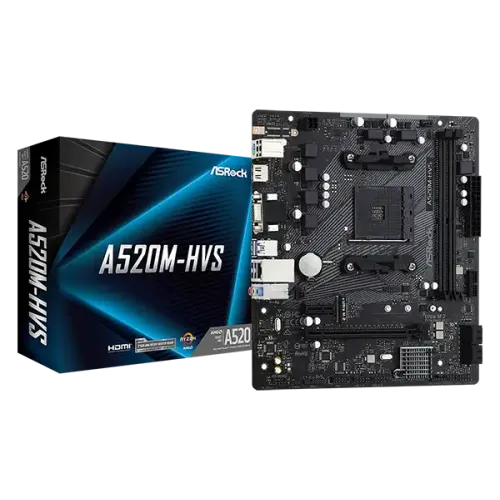

The ASRock A520M-HVS AMD AM4 Micro ATX Motherboard is designed for enthusiasts and gamers who demand high-performance computing. This feature-rich motherboard offers a reliable and efficient platform for AMD Ryzen processors, delivering smooth performance and excellent multitasking capabilities.
Key Features and Benefits
- Supports AMD Ryzen 3000, 4000 G-Series, and 5000 Series processors
- 6 Phase Power Design for reliable performance and reduced power consumption
- DDR4 4733+ (OC) RAM support for fast and efficient multitasking
- Multiple connectivity options, including PCIe 3.0 x16 and PCIe 3.0 x1 slots
- Realtek Gigabit LAN for reliable networking and high-speed data transfer
ASRock's Proprietary Technologies
The ASRock A520M-HVS motherboard features several proprietary technologies designed to enhance performance and stability. These include:
- ASRock Super Alloy - a premium power chokes and high-density glass fabric PCB design for improved durability and stability
- ASRock Ultra M.2 - a high-speed M.2 interface for enhanced data transfer and storage capabilities
- Full Spike Protection - a comprehensive protection system for USB, audio, and LAN ports against power surges and electrical spikes
Part ID: #CAN-00939
Last Updated: 4 hours ago
Available Deals & Price Comparison
Prices updated daily| Retailer | Stock Status | Price | Last Checked | Action |
|---|---|---|---|---|
|
Star Tech
ASRock A520M-HVS AMD AM4 Micro ATX Motherboard
|
In Stock | 7,300 | 2 hours ago | |
|
Sell Tech
ASRock A520M-HVS AMD AM4 Micro ATX Motherboard
|
In Stock | 7,300 | 2 hours ago | |
|
Skyland BD
ASRock A520M-HVS AMD AM4 Micro ATX Motherboard
|
In Stock | 7,900 | 1 hour ago | |
|
TechLand BD
ASROCK A520M-HVS AM4 DDR4 MICRO ATX AMD MOTHERBOARD
|
In Stock | 8,100 | 2 hours ago | |
|
Ultra Technology
ASRock A520M-HVS AMD AM4 Micro ATX Motherboard
|
In Stock | 8,100 | 2 hours ago | |
|
Creatus Computer
ASRock A520M-HVS AMD AM4 MATX Motherboard
|
In Stock | 8,200 | 2 hours ago | |
|
Nexus Computer
ASROCK A520M-HVS Micro ATX Motherboard
|
In Stock | 8,270 | 2 hours ago | |
|
PC House
ASRock A520M-HVS AMD AM4 Micro ATX Motherboard
|
In Stock | 8,390 | 2 hours ago |
Historical Pricing Trend
Product Specifications
Basic Information
Supported CPU
Supports AMD AM4 Socket Ryzen 3000, 4000 G-Series and 5000 and 5000 G-Series Desktop Processors 6 Power Phase design
Chipset
AMD A520
BIOS
- 128Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment
Form Factor
Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm Solid Capacitor design
Audio
7.1 CH HD Audio (Realtek ALC887/897 Audio Codec) Supports Surge Protection
Expansion Slots
PCI
1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* 1 x PCI Express 3.0 x1 Slot
Memory
Type
DDR4
Slots
2 x DIMM
Supported Memory
Dual Channel DDR4 Memory Technology AMD Ryzen series CPUs (Vermeer) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* Supports Extreme Memory Profile (XMP) memory modules 15μ Gold Contact in DIMM Slots
Maximum Memory
64GB
Graphics
Graphics
- Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU* - DirectX 12, Pixel Shader 5.0 - Shared memory default 2GB. Max Shared memory supports up to 16GB.** - Dual graphics output: support D-Sub and HDMI ports by independent display controllers - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) - Supports HDR (High Dynamic Range) with HDMI 2.1 - Supports HDCP 2.3 with HDMI 2.1 Port - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port - Supports Microsoft PlayReady
Max Shared Memory
16GB
Connector & Ports
HDMI
1 x HDMI
D-Sub (s)
1 x D-Sub
USB (s)
2 x USB 2.0 Ports (Supports ESD Protection) 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
LAN Port (s)
PCIE x1 Gigabit LAN 10/100/1000 Mb/s Realtek RTL8111H Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE
Supported Storage
CPU: 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes* Chipset: 4 x SATA3 6.0 Gb/s Connectors
RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Audio
HD Audio Jacks: Line in / Front Speaker / Microphone
Internal I/O Ports
1 x COM Port Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin)* 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)** 1 x 24 pin ATX Power Connector 1 x 4 pin 12V Power Connector 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
TPM (Trusted Platform Module )
1 x SPI TPM Header
Others
Special Features
ASRock Super Alloy - Premium 50A Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
Warranty Information
Manufacturing Warranty
03 Years Warranty
Key Features
Model
A520M-HVS
Supported CPU
AM4 Socket Ryzen 3000, 4000 G & 5000 & 5000 G-Series
Supported RAM
2 x DDR4, 4733+ (OC)
Graphics Output
D-Sub, HDMI
Features
1 x Ultra M.2, Realtek Gigabit LAN
